Product Detail

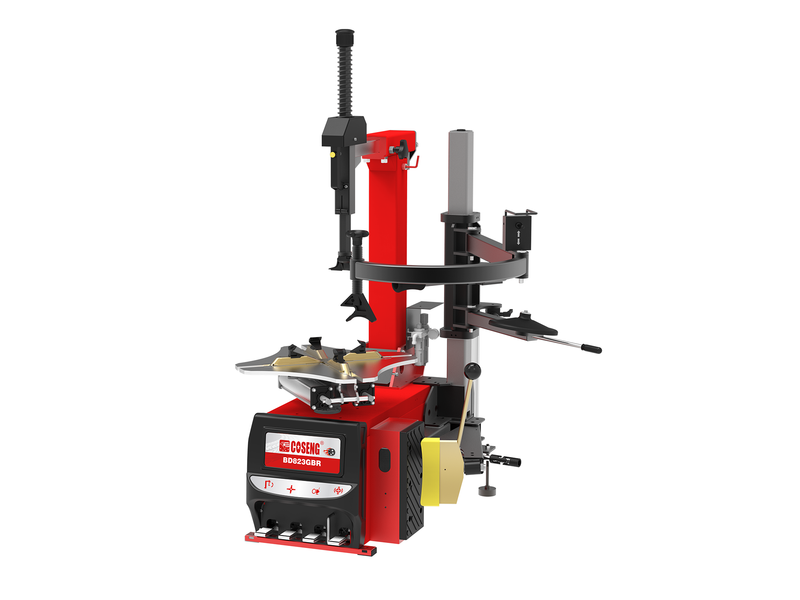

BD823GBR


BD823GBR
Contents

Feature

1.Tilt-Back design.

2.Special material demounting head with thicker hexagonal shaft is suitable for flat tire demounting.

3.Reinforced auxiliary arm: smoother running, stronger structure, improve working efficiency.

4.Highperformance integrated motor: able to adjust in real time according to the load demand, improve energy efficiency and reduce energy consumption.

5.∅200 large cylinder: 2500-3000kgf pressure output can easily cope with all kinds of heavy-duty vehicles tire demounting needs, to ensure efficient operation.

6.Ergonomically designed, it is more convenient to demount flat, widebody and super hard blast tires.

7.Manganese steel disk: hardness, wear resistance and impact resistance to ensure long time operation.

8.Optional adjustable jaws remove 28" tires.(GDR)



Specfications


Mode
BD823GBRStandard Accessories
Outside clamping range10‘’-22‘’Inflation gauge x 1pcs.
Inside clamping range12‘’-25‘’Crowbar x 1pcs.
Rim width350mm
Mounting head gasket x 1pcs.
Max. wheel diameter1080mmOptional
Work pressure8-10barIT Bead Blast System
Rotation per minute6rpmAdjustable jaws
Powers supply110/220/380V
Notor power0.75/1.1KW

N./G. weight320/359KG

Packing DIM1150*800*1000mm
