MagneticLevitation System

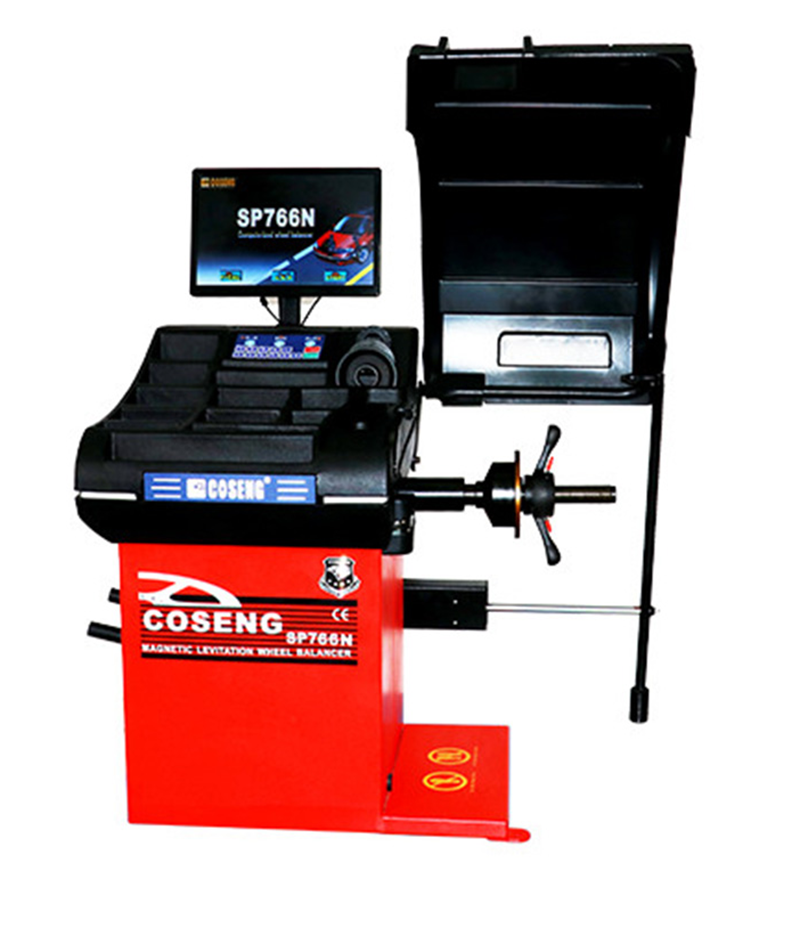

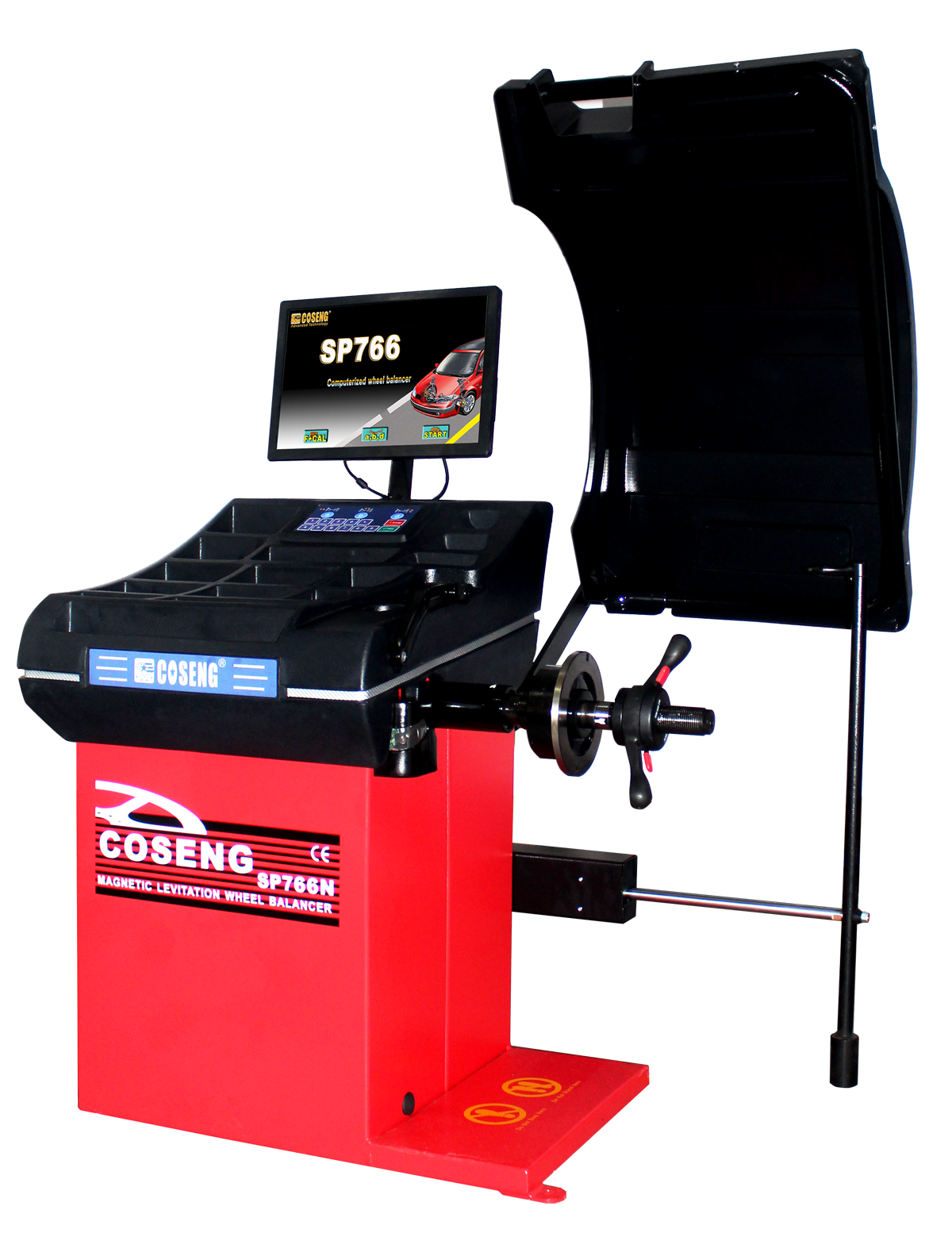

SP766N is a top classof SP series. Built balancing animation program with magneticdrive, 512 angular positions, smart position locator and automatic wheel datainput. Advanced and userfriendly machine.
Feature
1.MagneticLevitation System( MLS) and self propelled balancing (SPBU).
2.512 angularpositions.
3.Smart Positionocator (SPL).
4.Liner opticalencoder (LOE).
5.Advanced spinbrake (ASB).
6.Quadruplefrequency multiplier (QFM).
7.Automatic wheeldata input.
8.Smart Usersaver.
9.11 modes ofbalancing.
10.VisualLeaserTechnology (VLT)
Technical param:
| Model No. | SP766N | Standard fittings |
| Wheel hub diameter range | 10‘’-30‘’ | 4pcs. for cone adapter set |
| Max tire width | 415mm | Wheel hub caliper |
| tire diameter | 1080mm | 100g balance weight * 1 pcs. |
| Distance to spin flange | 11.2'' | Balance weight |
| Maximum tire weight | 80kg | Hexagon wrench * 1 pcs. |
| Balance accuracy | 1g | Optional accessories |
| Balance speed | 150-180RPM | Tire protector |
| Operation disply interface | 3D screens large press keyboard | Motorcycle jig |
| Detective location | 512 |
|
| Ounce/Gram conversion option | Yes |
|
| ALU mode | 11 |
|
| Shipping Weight | 120kg |
|
| Voltage Options | 220V |
|
| Packing Size | 97*77*115cm |
|
