Magnetic Levitation System
SP711N acquire world wide innovative technology with magnetic drive, 512 angular positions, smart position locator and on distance and diameter SP series is the top class of COSENG product and state of the art.
Feature
1.Magnetic Levitation System( MLS) and self propelled balancing (SPBU).
2.512 angular positions.
3.Smart Position Locator (SPL).
4.Liner optical encoder (LOE).
5.Advanc ed spin brake (ASB).
6.Automatic Distance and Diameter measurement

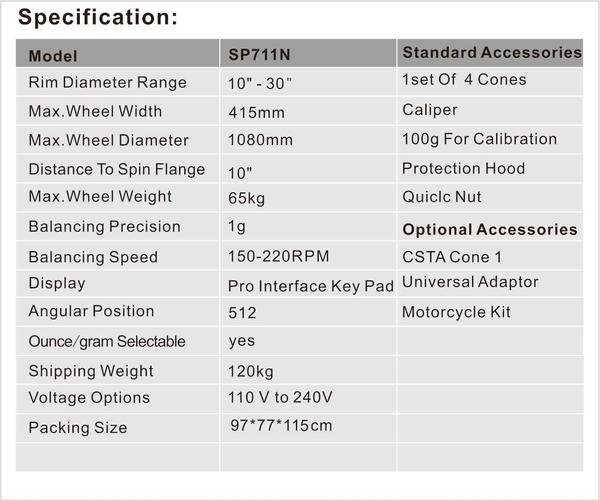

Product parameters
| Model No. | SP711N | Standard fittings |
| Wheel hub diameter range | 10‘’-30‘’ | 4pcs. for cone adapter set |
| Max tire width | 415mm | Wheel hub caliper |
| tire diameter | 1080mm | 100g balance weight * 1 pcs. |
| Distance to spin flange | 10'' | Balance weight |
| Maximum tire weight | 65kg | Hexagon wrench * 1 pcs. |
| Balance accuracy | 1g | Optional accessories |
| Balance speed | 150-220RPM | Tire protector |
| Operation disply interface | Pro Interface keyboard | Motorcycle jig |
| Detective location | 512 |
|
| Ounce/Gram conversion option | Yes |
|
| ALU mode | 8 |
|
| Shipping Weight | 120kg |
|
| Voltage Options | 220V |
|
