COSENG C601D type large vehicle axle positioning instrument uses infrared CCD measurement technology to precisely measure vehicle front beam, camber, main pin backward, main pin inward, axle parallelism and axle perpendicularity by taking the theoretical frame center-line as the measurement reference; it uses laser rangefinder to precisely measure axle string position through axle offset probe; thus realizing the measurement of vehicle positioning angle.

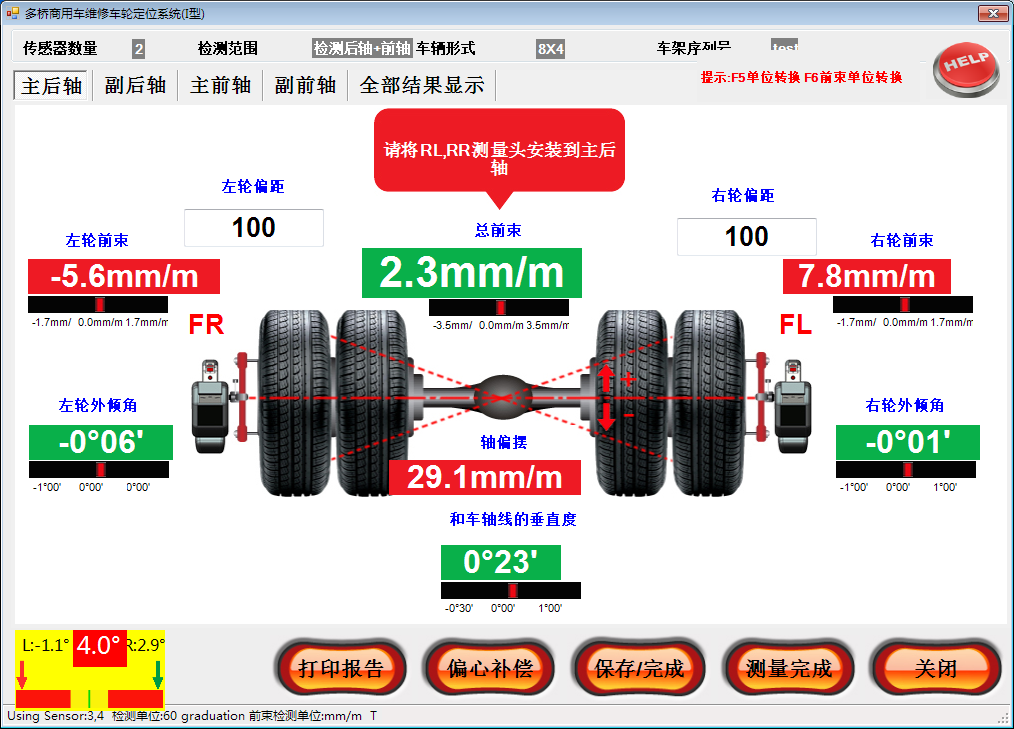

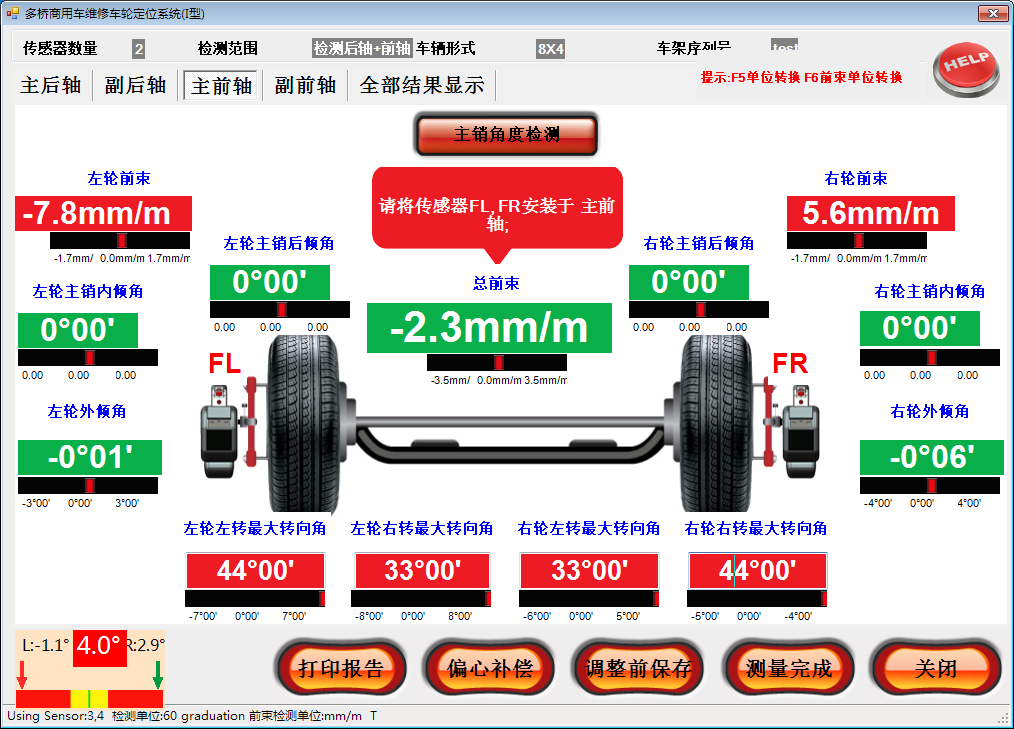

Software interface




Functional features

1.High precision CCD sensor, can directly measure the front beam, camber angle, main pin rear camber angle and other parameters.

2. can measure the parallelism between the main and vice steering axle of double steering axle vehicles (improper degree); measure the parallelism of the main and vice axle unilateral wheels (improper degree). Solve the common tire wear problem of the secondary steering axle. Can measure the parallelism of the drive axle (incorrectness).

3. Measure with trailer system. Measure the parallelism between trailer axles.

4. With high-precision digital display electronic laser distance meter, accurate measurement of axle string position.

5. Use stable and interference-free Bluetooth communication system between the sensor and the host.

6. Intelligent charging technology of the sensor protects the battery; it can be charged with hanging, convenient and fast.

7. Sensor with DPS processor, anti-light interference, can work outdoors.

8. With special fixture for large vehicles, can be internal and external card.

9. With special corner plate for big car, can load-bearing 5T.

10. Take theoretical frame center-line as the measurement reference.

11. Adopt lifting electronic compensation.

12. Parallelism real-time online adjustment function.

Technical Parms

Items	Total measurement range	Precision range	Accuracy
Total front beamof each axle wheel	±10°	±2°	±2′
Single front beam of each axle wheel	±5°	—	±1′
camber angle	±10°	±4°	±1′
main pin rear camber angle	±25°	±12°	±3′
Main pin inclination	±25°	±12°	±3′
Axle offset	—	—	±1mm
Axle verticality	±5°	±5°	±2′
Axle parallelism	±5°	±5°	±2′

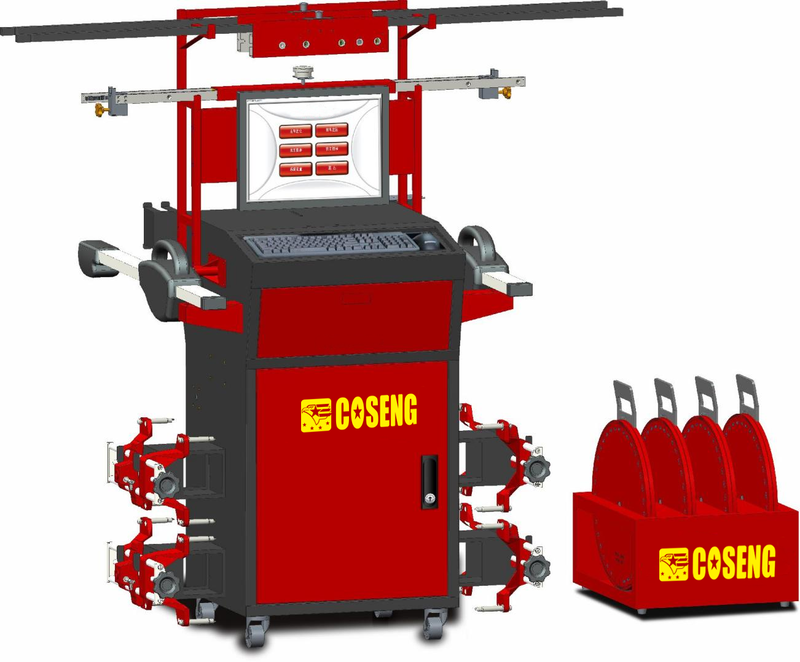

Main configuration list

NO.	Name	Cabinet fixed version	Aviation-box mobile version	Number	Notes
1	Measurement head			2 pcs	DSP-CCDtype Lithium battery7.4V 5600MAH with DC5.5 charger head
2	Measurement head charger			4 pcs	7.4V1A lithium battery charger
3	Socket			1 set	4 ports, 5m line
4	Communication box			1 set	Built-in Bluetooth module/dongle (with notebook pendant, can be hung on the display)
5	Clamps			4 pcs	24 inches,with two sets short and long jaws or one set of short and long universal jaw
6	Protective rope			4 strips	long- type
7	Brake top bar/steering wheel mount			1 set	long- type
8	Steering wheel for large vehicle			4 pcs
9	Lithium battery			2 sets	2800mah
10	Target aligner			1 set	Stretching volume
11	Extension rod			2	1900mm
12	I-type light target			2	With DC5.5 charger hole
13	Windproof fixer			1	Same as type3
14	hangers			4	1.Two 500mm/180 degree hooks 2.Two 500mm/90 degree hooks
15	Axle offset probe			1	With Laser rangefinder
16	Laser rangefinders			1 set
17	Triangular block			2
18	fixture hangers			4
19	Fixture and target storage rocks			1	Can be used to store fixtures and hang target for alignment
20	Wireless network card			1
21	Cabinets			1
22	Windows Tablet			1
23	Turntable storage rack			1
24	Wooden package			1
25	Main and trailer truck software	Main and trailer truck software		1
