Tire Changers · Tilt-Back
BD15
Leverless Table-Top Tire Changer
Rim Range 13–28''Powers 0.75 / 1.1 kWVoltages 220V / 380VMax. Wheel Diameter 1080 mm
Specifications
BD15 specs
Rim Range
13–28''
Rim Width
350 mm
Max. Wheel Diameter
1080 mm
Work Pressure
8–10 bar
Voltages
220V / 380V
Tire Lift Max Loading
75 kg
Noise
<70 dB
Operation Speed
6/12 rpm (380V)
Powers
0.75 / 1.1 kW
N./G. Weight
368 / 430 kg
Machine-Space DIM
1800 × 1800 × 2200 mm
Packing DIM
1380 × 1130 × 1840 mm
Max QTY In Container
8 pcs (20'') & 16 pcs (40'')
Resources
Docs & media
📄
Product brochure
Factory datasheet for the BD15 — specifications, features and standard accessories (PDF).
⬇ Download brochure (PDF)▶
Product video
See the BD15 in operation.
⏳ Video coming soonFeatures
What sets it apart
01
Crowbar-free bird head reversal
Automatic bird head reversal with extended tire removal hooks.
02
Reversing switch
Enables easy direction reversal to enhance operational flexibility and efficiency.
03
High-performance integrated motor
Real-time load-based adjustment to improve energy efficiency and reduce energy consumption.
A closer look
Components & build detail
Key components and assemblies of the BD15.

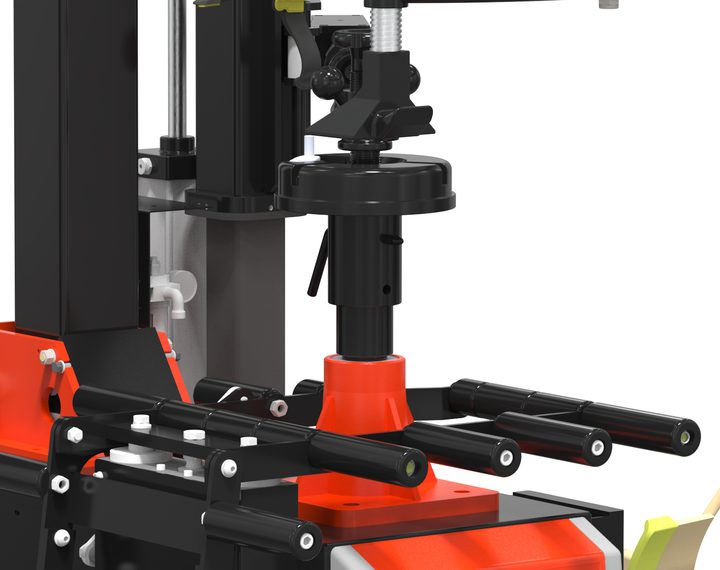

Center-post worktable

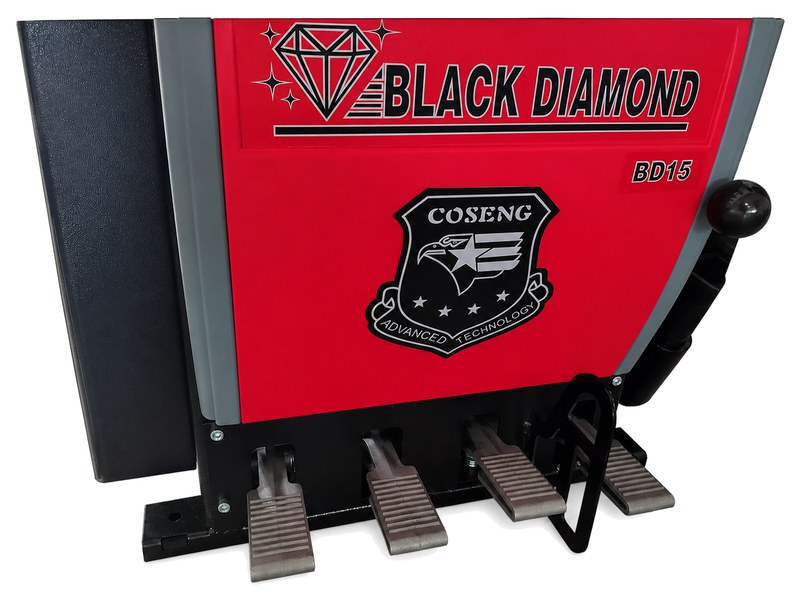

Front foot pedals

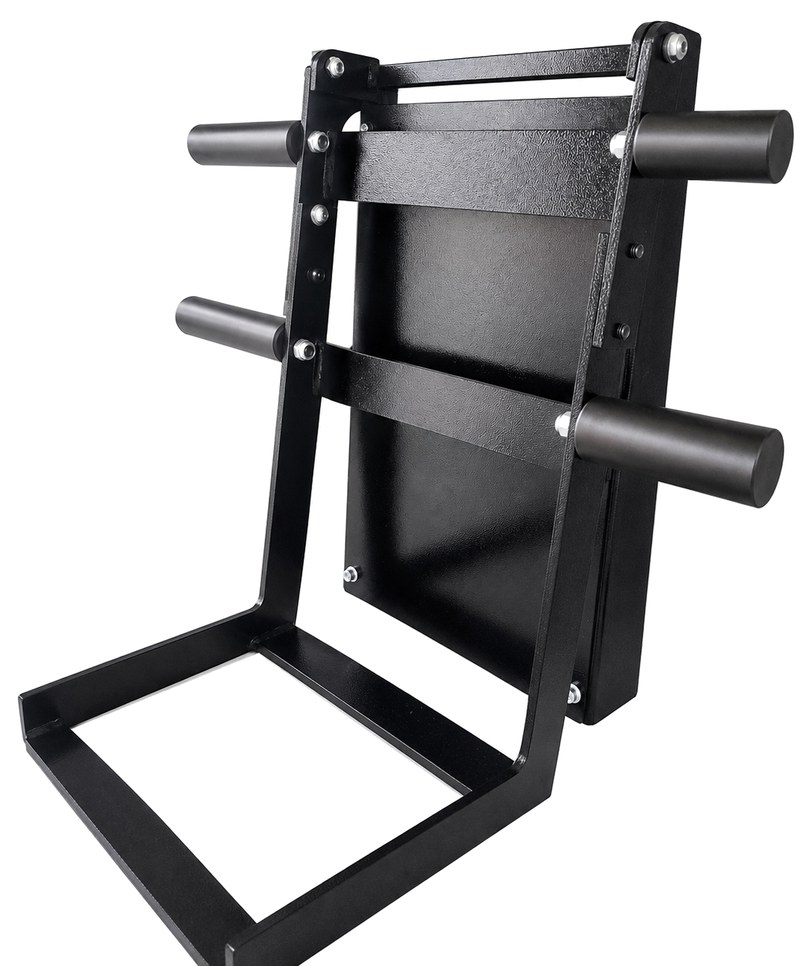

Tire support rack

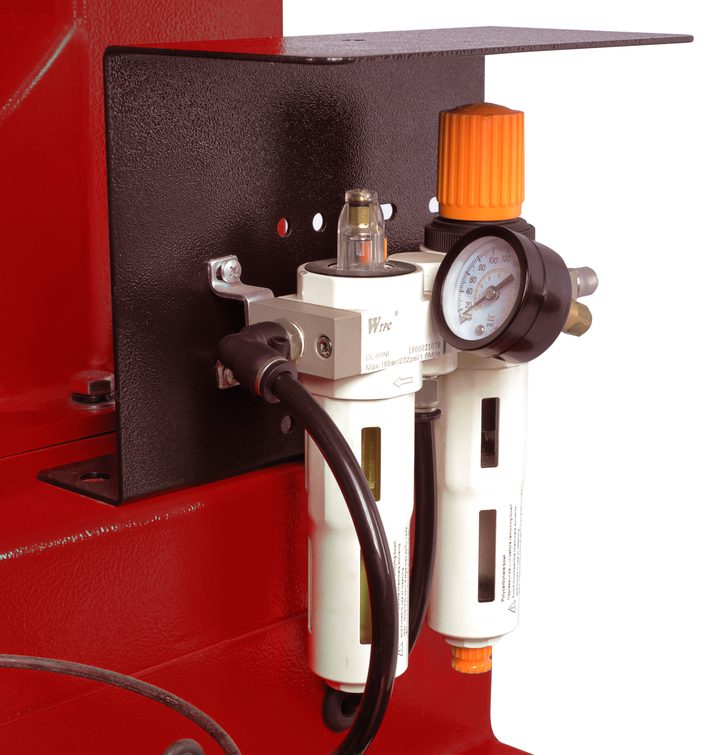

Air lubricator

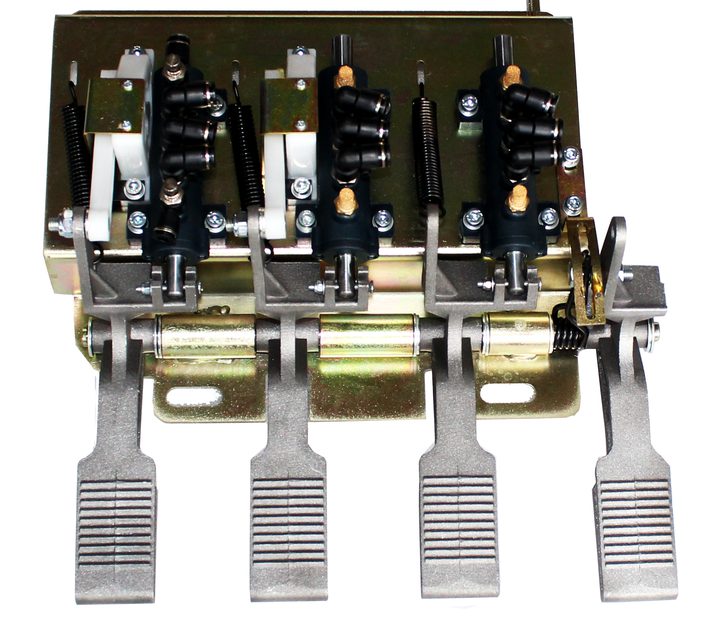

Foot pedals

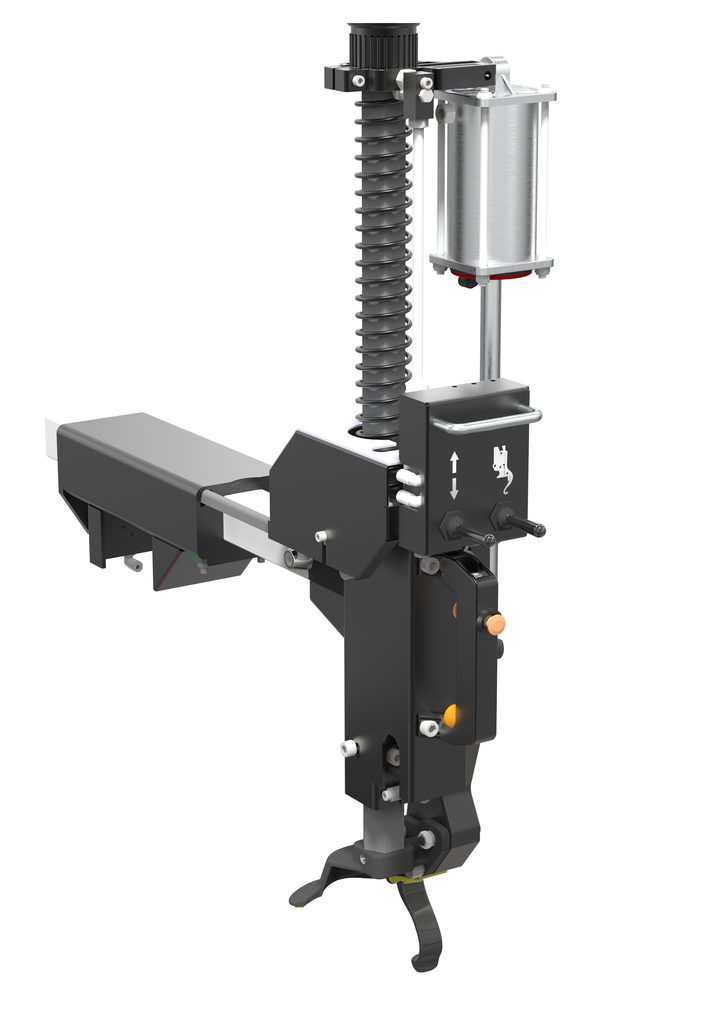

Mounting head & slide arm

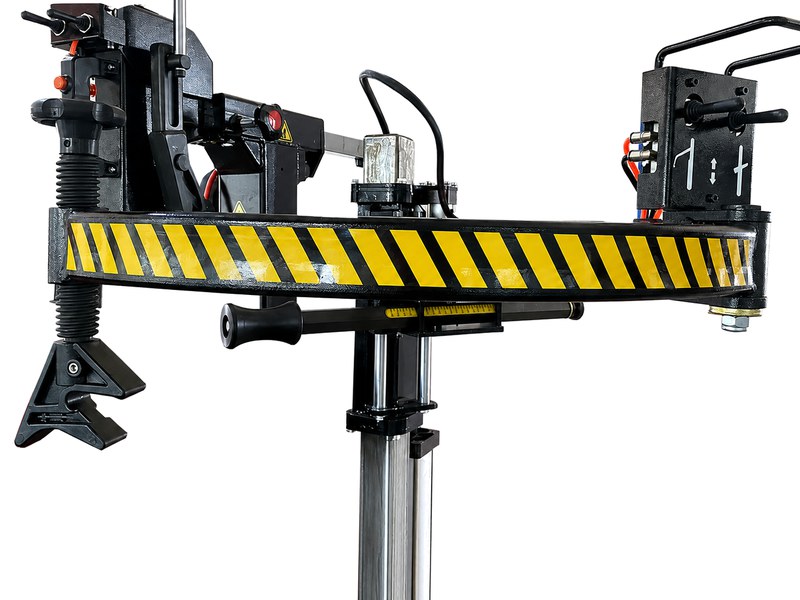

Auxiliary arm

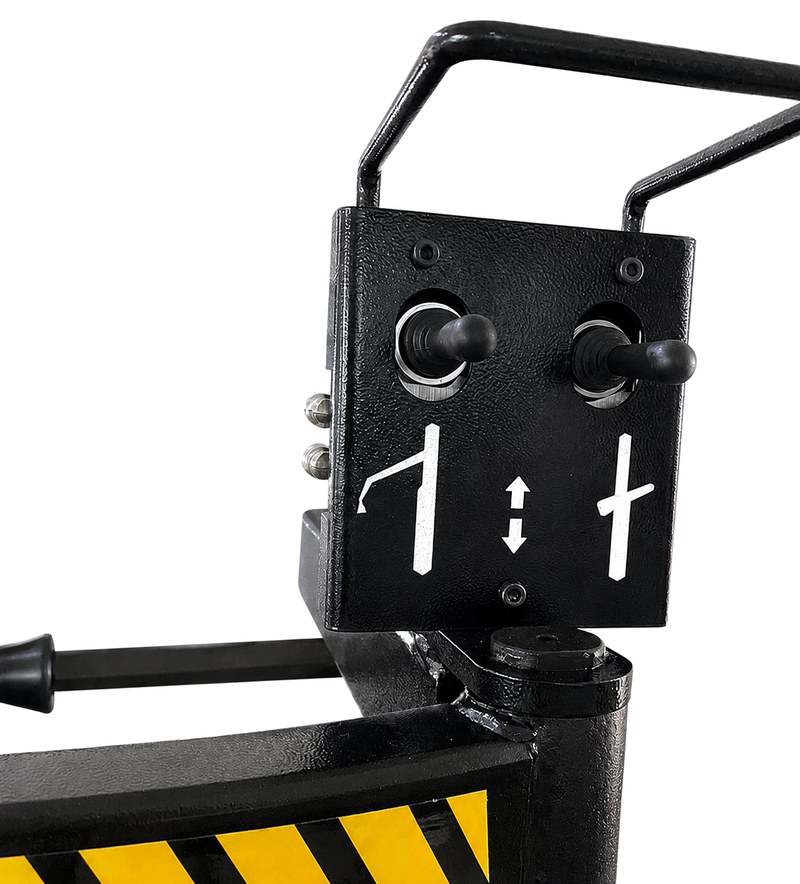

Auxiliary arm controls
In the crate
Standard accessories
Tire PresserPlastic CrowbarCaliperUniversal Fixture AdaptorConeBird's Head GasketTire Shovel Sleeve
