Tire Changers · Tilt-Back
BD823GDR
Automatic Table-Top Tire Changer with Right Assist Arm
Powers 0.75 / 1.1 kWOutside clamping range 10–26''Inside clamping range 12–28''Max tire width 350 mm
Specifications
BD823GDR specs
Outside clamping range
10–26''
Inside clamping range
12–28''
Max tire width
350 mm
Max tire diameter
1080 mm
Operation speed
6 rpm
Powers
0.75 / 1.1 kW
Packing size
1150 × 800 × 1000 mm
Working air pressure
8–10 bar
Voltage
110V / 220V / 380V
Net/Gross weight
243 / 268 kg
Max QTY in container
24 pcs (20'') & 52 pcs (40'')
Resources
Docs & media
📄
Product brochure
Factory datasheet for the BD823GDR — specifications, features and standard accessories (PDF).
⬇ Download brochure (PDF)▶
Product video
See the BD823GDR in operation.
⏳ Video coming soonFeatures
What sets it apart
01
Flat tire demounting head
Special material demounting head with thicker hexagonal shaft is suitable for flat tire demounting.
02
High-performance integrated motor
Real-time load adjustment to improve energy efficiency and reduce energy consumption.
03
Ergonomic design
More convenient to demount flat, wide-body and super-hard blast tires.
04
Tilt-back design
Tilt-back working system.
05
Reinforced auxiliary arm
Smoother running, stronger structure; improves working efficiency.
06
Large ∅200 cylinder
2500–3000 kgf pressure output for demounting needs.
07
Manganese steel disk
Hardness, wear resistance and impact resistance for long time operation.
In the crate
Standard accessories
Clamp-jaw covers
Bead-breaker blade cover

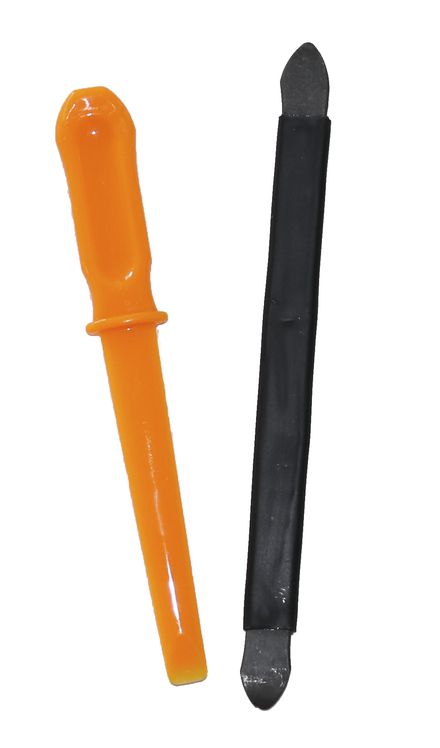

Plastic & metal tire levers

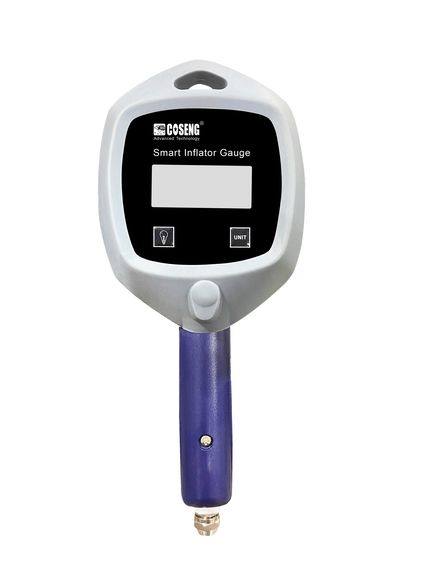

Inflation gauge
Bracket

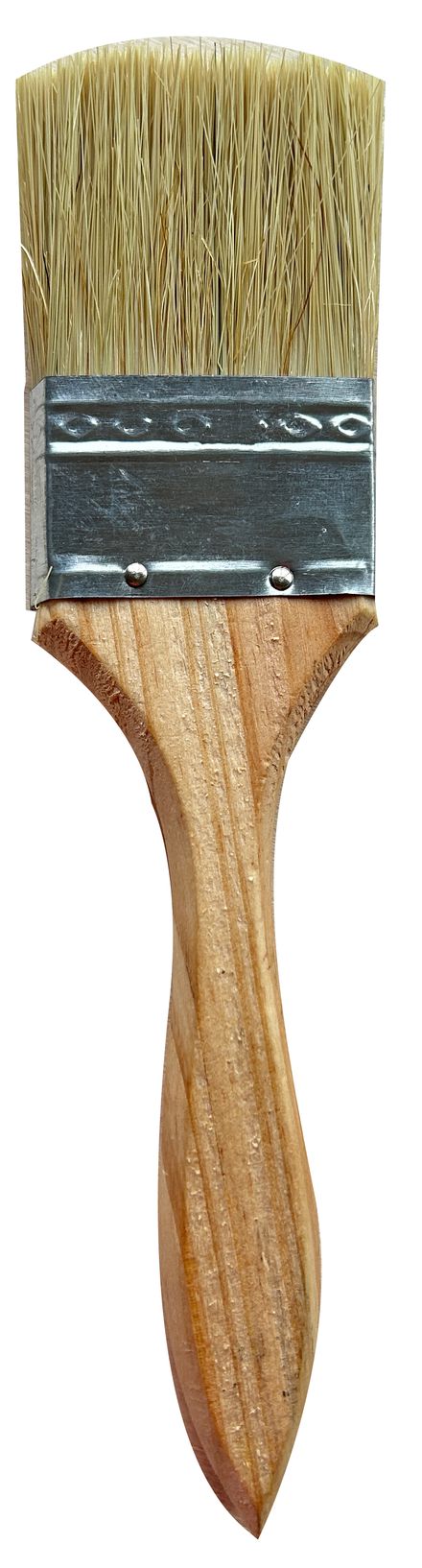

Brush
Oil cup
Mounting-head gasket
