Tire Changers · Tilt-Back

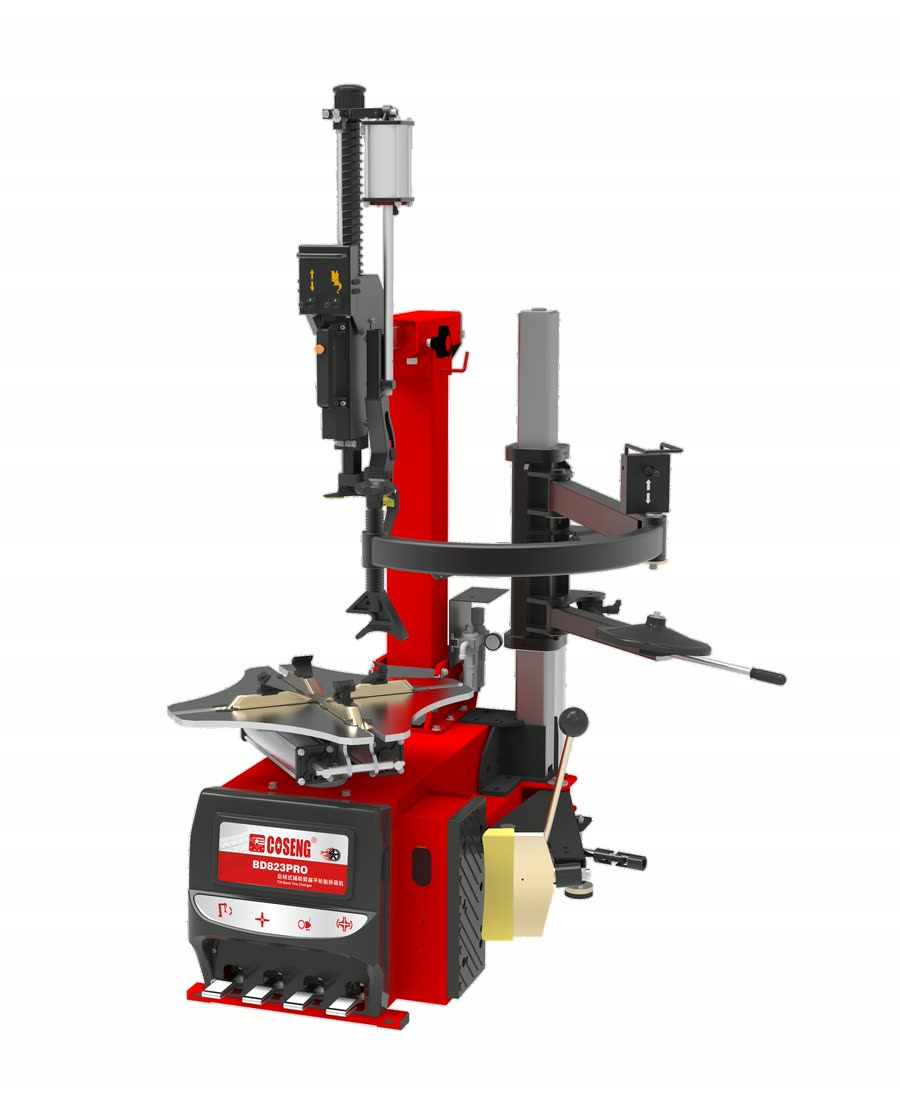

BD823PRO
Automatic & Semi-Automatic Table-Top Tire Changer
Powers 0.75 / 1.1 kWVoltages 110V / 220V / 380VMax. Wheel Diameter 1080 mmOutside Clamping Range 10–26''
Specifications
BD823PRO specs
Outside Clamping Range
10–26''
Inside Clamping Range
12–28''
Rim Width
350 mm
Max. Wheel Diameter
1080 mm
Work Pressure
8–10 bar
Operation Speed
6 rpm
Voltages
110V / 220V / 380V
Powers
0.75 / 1.1 kW
N./G. Weight
331 / 375 kg
Packing DIM
1200 × 920 × 1900 mm
Machine-Space DIM
1800 × 1800 × 2200 mm
Noise
<70 dB
Max QTY In Container
8 pcs (20'') & 20 pcs (40'')
Resources
Docs & media
📄
Product brochure
Factory datasheet for the BD823PRO — specifications, features and standard accessories (PDF).
⬇ Download brochure (PDF)▶
Product video
See the BD823PRO in operation.
⏳ Video coming soonFeatures
What sets it apart
01
Tilt-back design
Tilt-back working system.
02
Crowbar-free bird head reversal
Automatic bird head reversal with extended tire removal hooks.
03
Reinforced auxiliary arm
Smoother running, stronger structure; improves working efficiency.
04
High-performance integrated motor
Adjusts output in real time based on load; improves energy efficiency and reduces energy consumption.
05
Large ∅200 cylinder
2500–3000 kgf pressure output for heavy-duty demounting needs.
06
Ergonomic design
More convenient for flat, wide-body, and super-hard blast tires.
07
Manganese steel disk
Hardness/wear/impact resistance for long time operation.
A closer look
Components & build detail
Key components and assemblies of the BD823PRO.

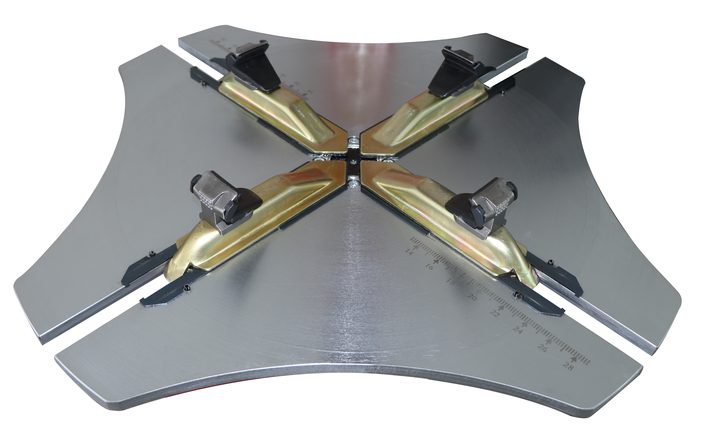

28-inch turntable
Integrated motor

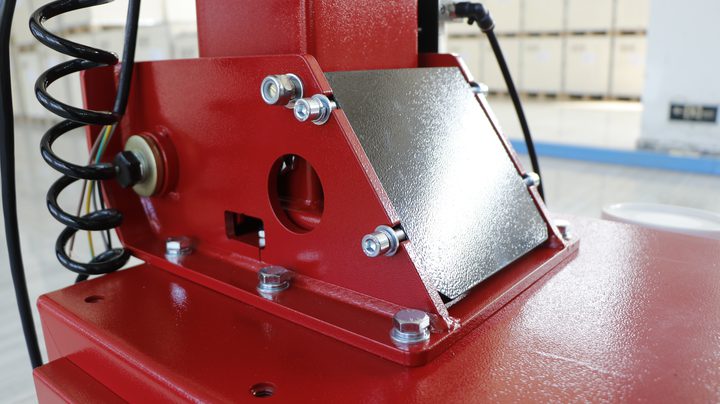

Tilt-back base

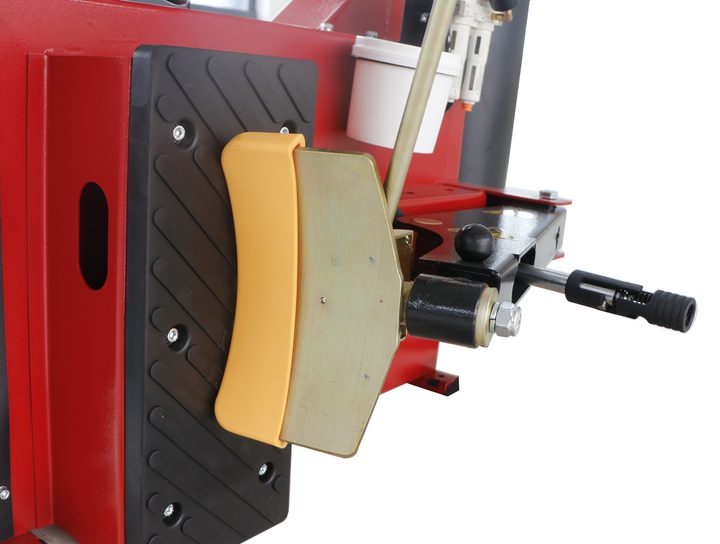

Bead-breaker blade

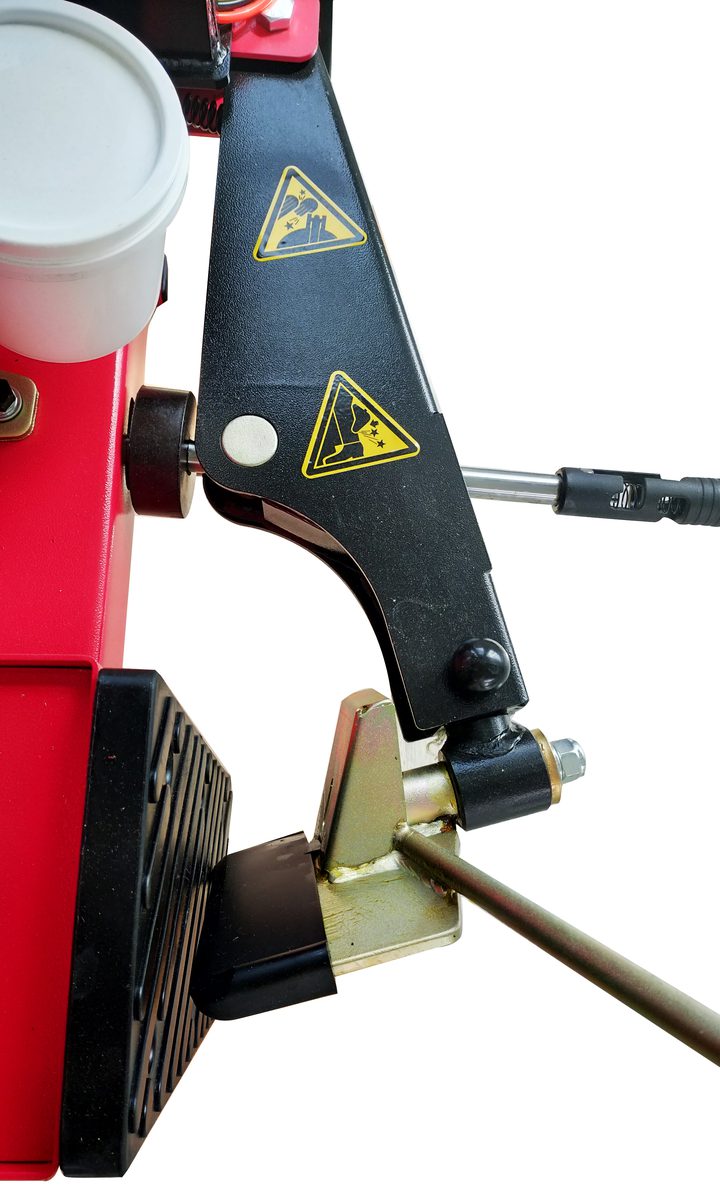

Bead-breaker arm

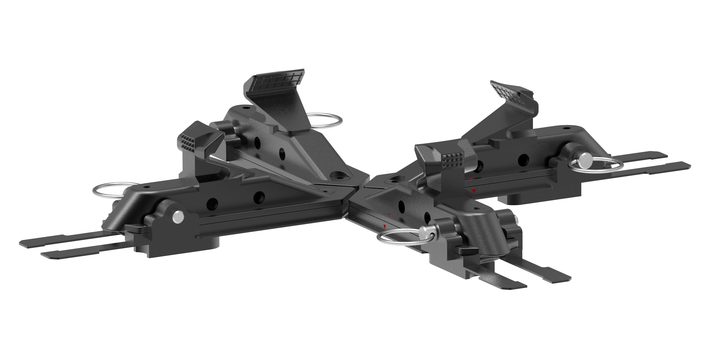

Adjustable clamping jaws

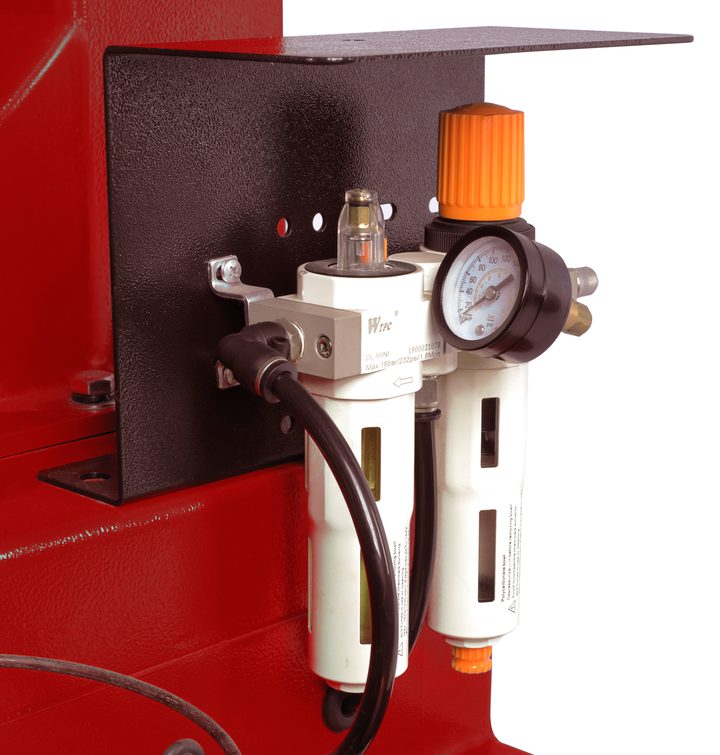

Air lubricator

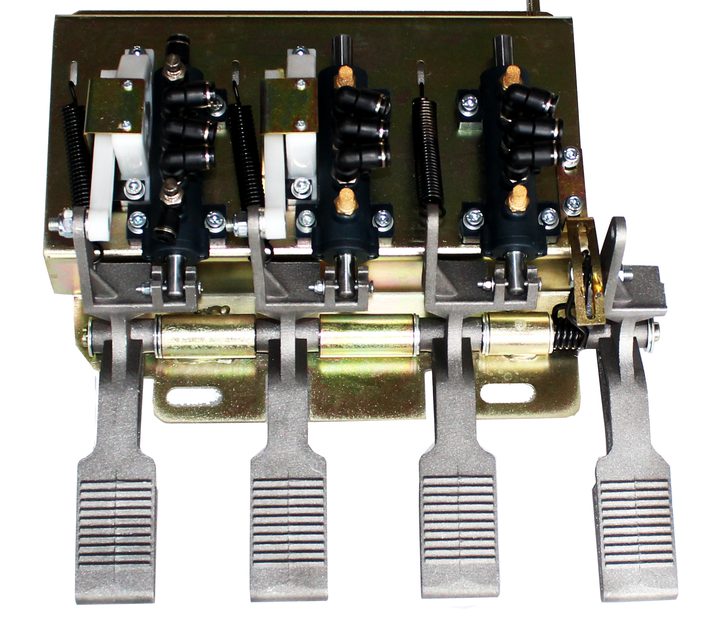

Foot pedals

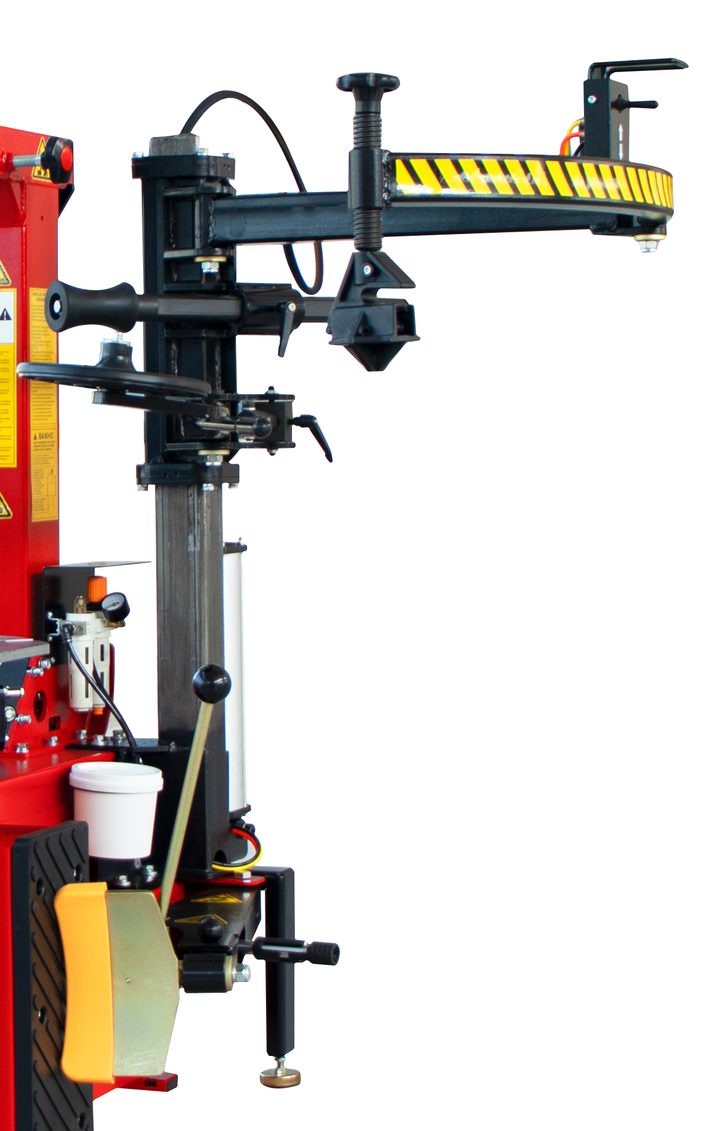

Auxiliary arm
Auxiliary-arm cylinder
In the crate
Standard accessories
Clamp-jaw covers
Bead-breaker blade cover
Plastic & metal tire levers
Inflation gauge
Bracket
Brush
Oil cup
Mounting-head gasket
