Tire Changers · Swing Arm
C211GB+NAAL
Swing Arm Tire Changer with Assist Arm
Applicable outer clamping 10"-21"Applicable inside clamping 12"-24"Max. wheel width 315mmMax. wheel diameter 960mm
Specifications
C211GB+NAAL specs
Applicable outer clamping
10"-21"
Applicable inside clamping
12"-24"
Max. wheel width
315mm
Max. wheel diameter
960mm
Working air pressure
8-10bar
Tire-pressed shovel force
2000-2500kgf
Optional volt
110V/220V
N./G. Weight
205/230kg, 75/88kg(NAAL)
Packing DIM
9707701000mm, 1150520300mm(NAAL)
Resources
Docs & media
📄
Product brochure
Factory datasheet for the C211GB+NAAL — specifications, features and standard accessories (PDF).
⬇ Download brochure (PDF)▶
Product video
See the C211GB+NAAL in operation.
⏳ Video coming soonFeatures
What sets it apart
01
Swing arm design.
02
2500kgf aluminum alloy tire press cylinder.
03
New hexagonal press rod sheath adjusts for misalignment.
04
Ergonomic design, more convenient to dismount flat, wide
05
High Precision Large Turntable serve up to 24 inch rim.
06
body and super hard anti-explosion tires.
In the crate
Standard accessories
20-inch tire lever
Hex-rod cap
Clamp-jaw covers

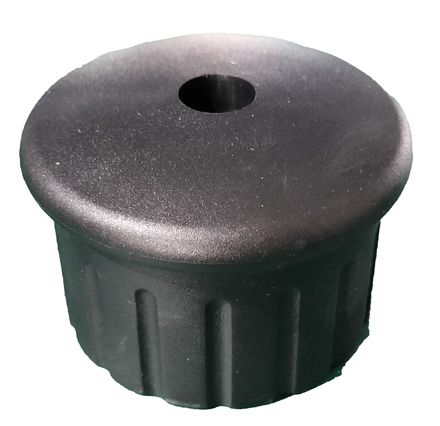

Press-rod cap
Bead-breaker blade cover

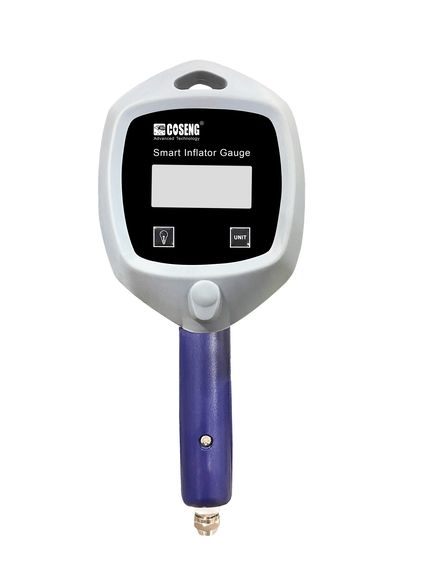

Inflation gauge

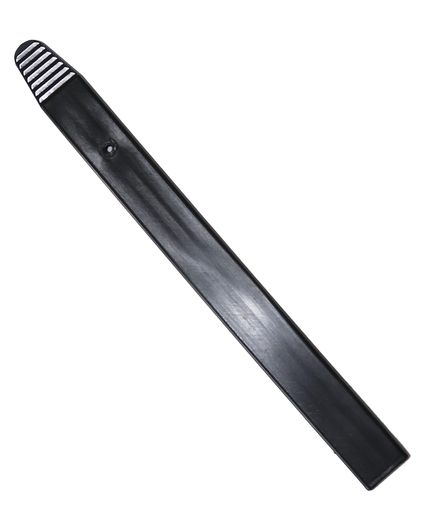

Tire-lever cover
Bracket

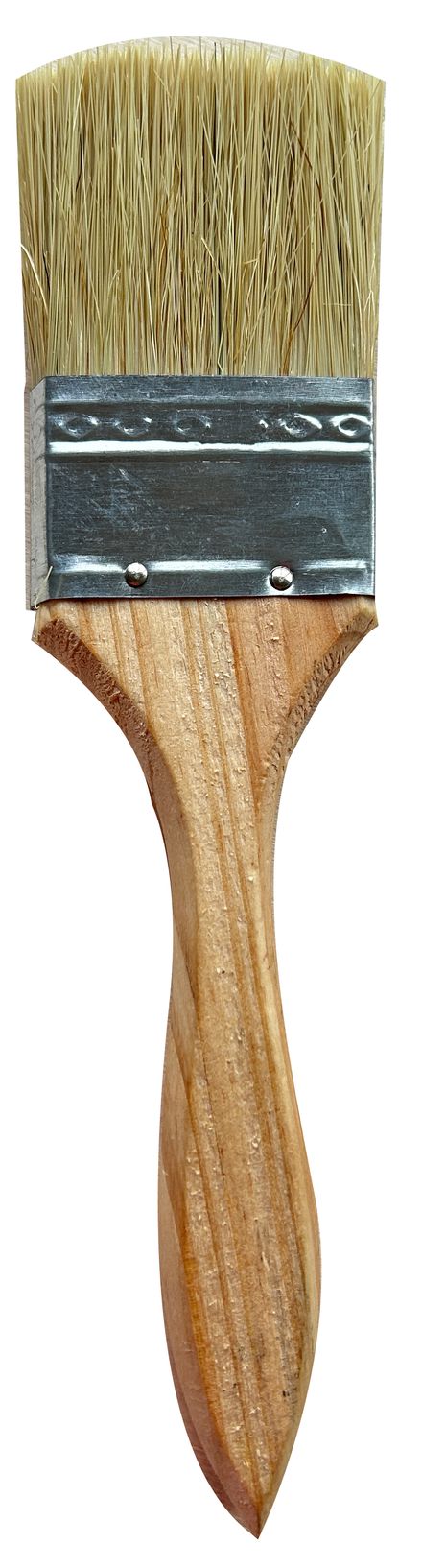

Brush
Oil cup

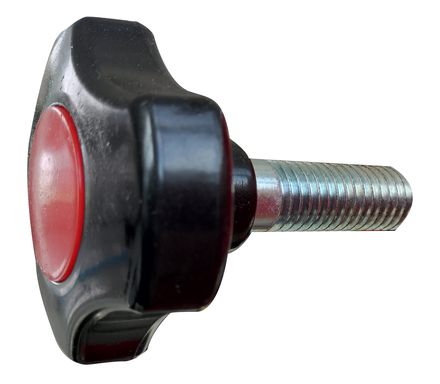

Adjusting nut
Mounting-head gasket
Quote the C211GB+NAAL for your market.
Send your country and quantity — our export team replies with pricing, lead time and container loading.
