Wheel Balancers · Magnetic Levitation

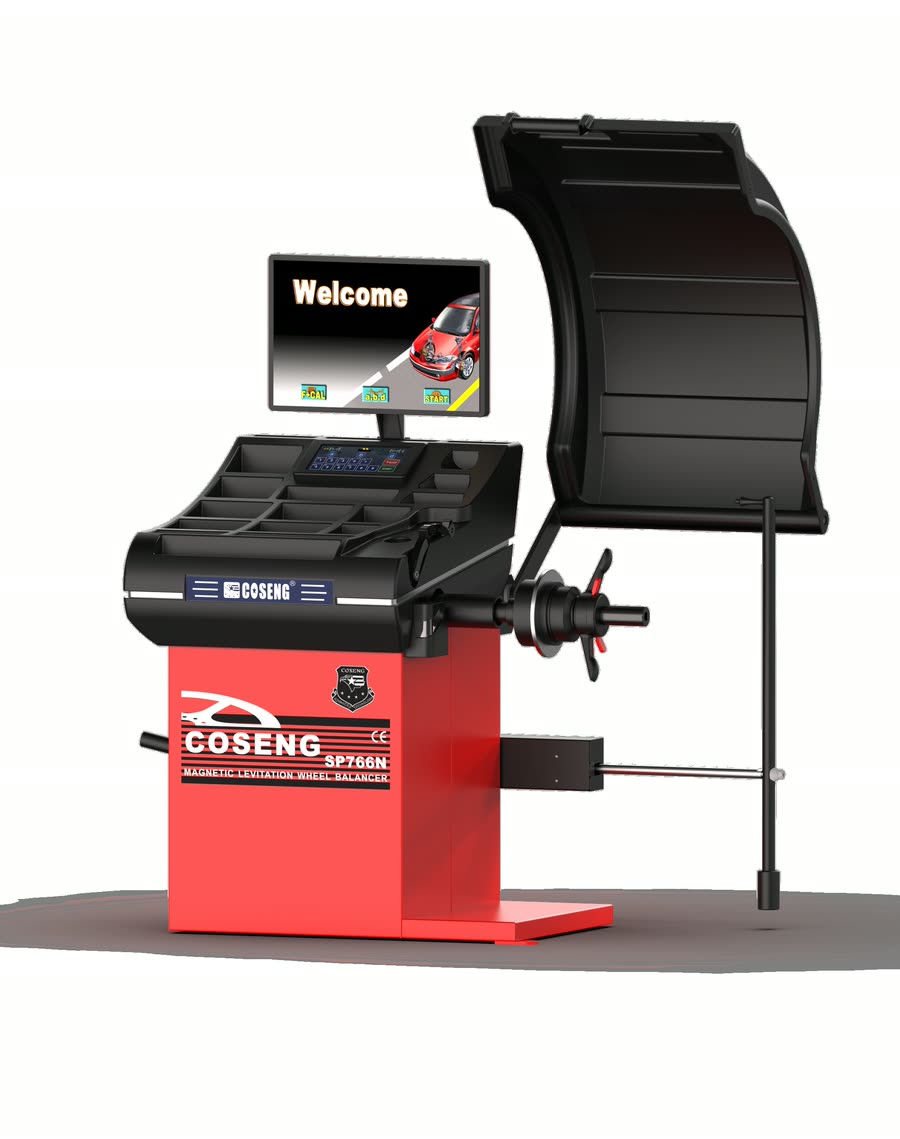

SP766N
Magnetic Levitation Balancer
Wheel hub diameter range 10"-30"Max. wheel width 415mmMax. wheel diameter 1080mmDistance to spin flange 11.2"
Specifications
SP766N specs
Wheel hub diameter range
10"-30"
Max. wheel width
415mm
Max. wheel diameter
1080mm
Distance to spin flange
11.2"
Maximum tire weight
80kg
Balance accuracy
1g
Balance speed
150-180RPM
Operation display interface
3D screen large press keyboard
Detective location
512
Ounce/Gram conversion option
yes
ALU mode
11
Net / Gross Weight
120/140kg
Optional volt
110V/220V
Packing DIM
9777115cm
Resources
Docs & media
📄
Product brochure
Factory datasheet for the SP766N — specifications, features and standard accessories (PDF).
⬇ Download brochure (PDF)▶
Product video
See the SP766N in operation.
⏳ Video coming soonFeatures
What sets it apart
01
Magnetic levitation system (MLS) and self propelled balancing (SPBU).
02
512 angular positions.
03
Smart position locator (SPL).
04
Liner optical encoder (LOE).
05
Advanced spin brake (ASB).
06
Quadruple frequency multiplier (QFM).
07
Automatic wheel data input.
08
Smart user saver.
09
11 modes of balancing.
10
Visual laser technology (VLT).
In the crate
Standard accessories
Cone 100–132 mm
Cone 44–65 mm
Cone 54–79 mm
5 mm & 8 mm hex wrenches
Cone 74–109 mm
Spindle lead screw
Extended caliper head
Caliper
Plastic cup
Tool hanger
Weight pliers
Wheel weights
Quick-release nut
Threaded shaft & lead screw
Threaded shaft
